Crucial Considerations for Car Hoist Installation in Your Garage

If you’re in the process of planning the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets the required specifications. A robust and stable foundation is not only critical for the efficient operation of the hoist but is also vital for the safety of your vehicles and anyone who operates the equipment. Taking the time to prepare properly and adhere to established guidelines can significantly improve both the performance and lifespan of your car hoist, ultimately safeguarding your investment.

Most car hoists necessitate a concrete slab that is at least 100mm (4 inches) in thickness. This specific measurement is crucial as it allows for the even distribution of weight from both the vehicle and the hoist, thereby reducing the chances of cracking or sinking over time. For those considering heavy-duty hoists, it may be prudent to opt for a thicker concrete slab, potentially reaching up to 150mm (6 inches), to ensure optimal performance, stability, and safety during use.

Comprehensive Steps to Determine Concrete Thickness for Car Hoist Installation

The thickness of your concrete floor plays a pivotal role in the safe installation and operation of a car hoist. When evaluating the appropriate depth for your slab, several factors need to be considered to ensure it can adequately support the loads it will encounter during use. By understanding these factors, you can avoid costly mistakes and greatly enhance the safety of your garage setup.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert significant stress on the concrete floor beneath them. Therefore, it is essential to comprehend the total weight your concrete floor must support. This consideration includes not only the weight of the vehicle but also the weight of the hoist itself, which can add substantial load to the floor. Understanding this weight distribution is integral to ensuring the safety and effectiveness of your hoist.

A standard passenger car generally weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Furthermore, it is wise to account for extra weight as a safety buffer to guarantee that the structure can handle unforeseen circumstances. By accurately assessing these weights, you can make informed decisions regarding your concrete slab’s thickness.

For most home garages, a concrete thickness between 100 mm and 150 mm is typically sufficient. Nonetheless, if your plans include lifting significantly heavier vehicles, it may be essential to contemplate a thicker slab to maintain safety and stability during operation. Engaging with a structural engineer is a prudent move. Their expertise can provide tailored guidance and assist you in determining the precise thickness needed based on your specific circumstances and requirements.

Examining Various Car Hoist Types and Their Concrete Thickness Needs

It’s crucial to recognize that different types of car hoists come with unique concrete thickness requirements. Two-post lifts and four-post lifts are among the most popular options for homeowners looking to integrate a car hoist into their garage setup. Understanding these differences is key to making an informed choice.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This is essential for preventing structural issues and ensuring safe operation.

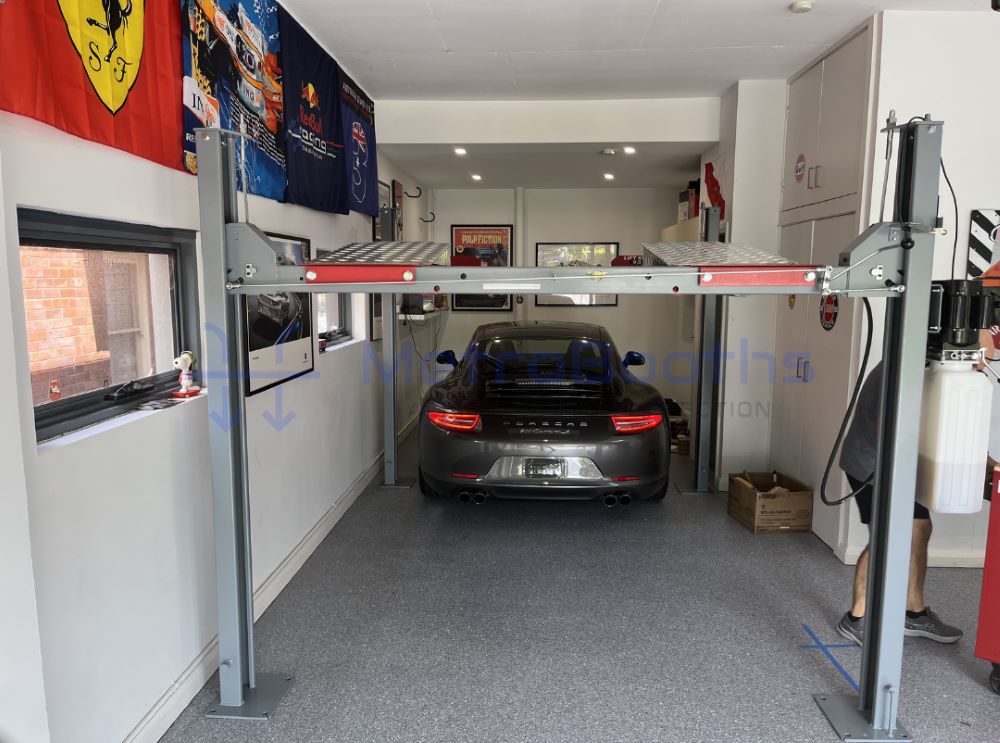

In contrast, four-post lifts distribute weight more evenly over a larger area, allowing them to function effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This understanding is vital for your planning and installation process, leading to a more efficient setup.

Always refer to the manufacturer’s specifications for the hoist you are considering, as they will usually specify the minimum concrete thickness required for safe operation. Adhering to these guidelines is critical for achieving optimal performance and ensuring the longevity of your investment.

Keep in mind that these recommendations serve as general guidelines. Your specific needs may vary depending on the configuration of your garage and the types of vehicles you plan to lift.

Recognizing the Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is just as vital as its thickness. Stronger concrete can often be successfully used at a thinner depth while still providing adequate support for heavy loads, which is particularly relevant in the context of car hoist installations. Understanding this balance is key to a successful setup.

It is advisable to utilize concrete with a compressive strength of at least 25 MPa for car hoist installations. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting. This choice ensures that your hoist operates safely and efficiently, reducing the risk of structural failure.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. Adding steel mesh or rebar can greatly improve the overall strength of your concrete floor, allowing you to use a thinner slab while still ensuring it can effectively support heavy loads during operation.

For most home garages, SL82 mesh is a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, which is a critical consideration for budget-conscious homeowners. If you have concerns regarding potential cracking, consider integrating fibers into your concrete mix. This inclusion can help mitigate the formation and propagation of small cracks over time, enhancing the longevity of your installation.

Critical Installation Factors for Ensuring Successful Car Hoist Operation

When you are installing a car hoist, meticulous site preparation and consistent floor maintenance are paramount. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your valuable investment.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before proceeding with the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is essential to employ steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability. This approach will help prevent any future issues related to load-bearing capacity.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition. This precaution can save you from potential complications down the line.

Vital Ongoing Maintenance After Your Car Hoist Installation

Once your car hoist is successfully installed, it’s critical to regularly monitor the condition of the concrete surrounding it. Keeping an eye out for any cracks, chips, or signs of stress is essential, and addressing any issues promptly can prevent larger complications that could impede the functionality of your hoist. Regular checks can ensure a long-lasting installation.

It is crucial to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider placing protective mats under the lift arms to minimize wear and tear on the floor, thereby extending its lifespan and maintaining safety.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage for years to come.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for your garage.

Common Questions Regarding Car Hoist Installation and Concrete Requirements

Installing a car hoist requires careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts, providing valuable insights to aid your decision-making process.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth offers adequate strength to support both the weight of the vehicles and the lift itself. It is essential to always consult the manufacturer’s specifications, as certain models may require thicker slabs for safe operation, ensuring peace of mind during use.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It’s wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing assurance that your setup will be both safe and efficient.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards and potential accidents. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation, ensuring your setup is reliable.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness ranging from 100mm to 150mm. This range is suitable for both two-post and four-post hoists, accommodating a variety of lifting needs. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, providing peace of mind in a busy environment.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilized with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring a safe lifting environment.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximize safety and efficiency, giving you confidence in your garage operations.
